Do the special chainage files already exist, or are you trying to create them in the macro?

If you have another look through the macro manual you'll see there are multiple Set_parameter calls, each with its own set of parameters (arguments).

The one you actually want is the one that sets the ...

The shortcut within the working folder that you would use to open the project will also need to be updated, assuming you want that to work. If you're only using the 12d launcher to open the project then it's not necessary, but I would probably update the shortcut anyway to avoid the possibility of ...

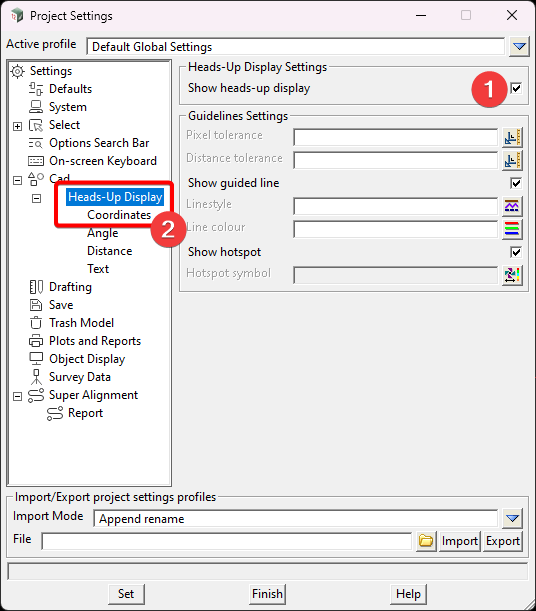

In v15, Project > Settings.

Hi Elliot,

There's no direct call to compare them - you'd need two Text variables to get the return values, and then manually compare those values for each individual vertex of each individual string (element).

The call you want is:
Get_super_vertex_point_number(Element super,Integer vert,Text ...

You could always dump an SLX for that panel and stick it in a chain after you recalc the MTF function:

Have you tried creating a Perspective frame?



Also worth noting that the env.4d setting DEFAULT_RASTER_DPI_4D controls the overall raster print quality, so you may need to adjust this in conjunction with the 'High res factor' field on the Perspective frame to get ...
