Longsection PPF assistances

[Steven John Houghton]

I'm currently using with 12D V14.0C2g and I'm trying to display the design surface grades % on my longsections above the design surface. I've been able to get them to display the horizontally above the boxing, but I would like the text to be located above the design surface and rotated at the same grade as the design surface.
Thanks in advanced
Steven Houghton
steven.houghton@hig.com.au
PH: 0421283933

[Owen Thornton]

There is an example of this in the installed PPF: $LIB\longsection_PW_A1_basic.lplotppf

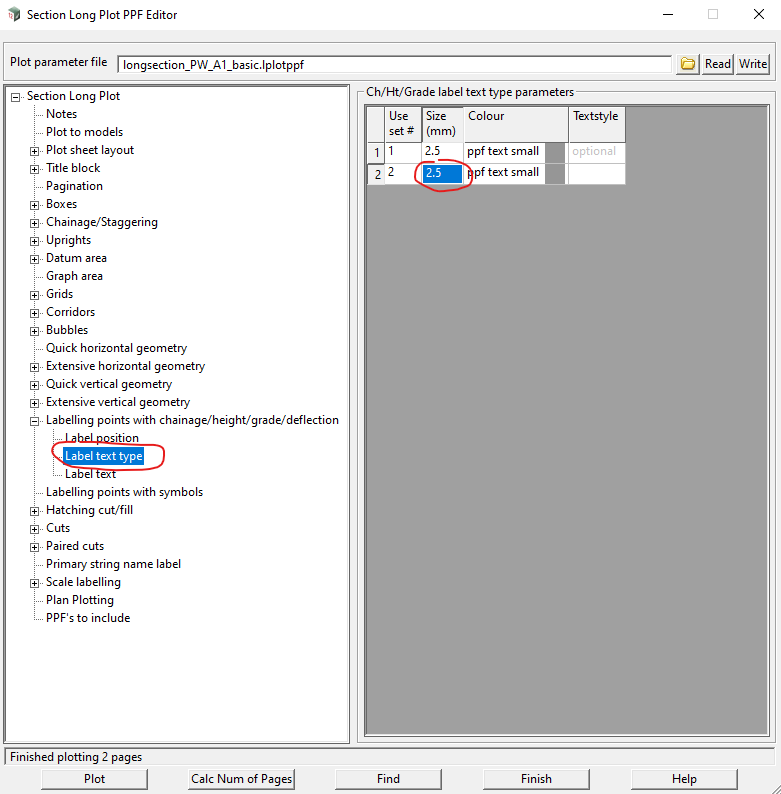

To turn it on, you just need to set the text size greater than zero, as shown here:
