I have an interface string that is generated via a v-drain template (Final Cut/Fill) in the MTF. I have taken a few screenshots of the template, in case something is incorrect. The 'Cut' section has nothing set in the template.
My query is how do I modify the IA string to go from one point to another, essentially removing the points in between? Do I use 'Fixed - Modify Link' and select 'Width - Width' and then use 'Fixed - to 2 Heights' and set the two RLs? I am trying to create a low point for drainage purposes. I would appreciate any advice/suggestions.
Modifying IA Strings
-
Claire Bock
- Posts: 3
- Joined: Fri Dec 14, 2018 3:17 pm
Modifying IA Strings
- Attachments
-

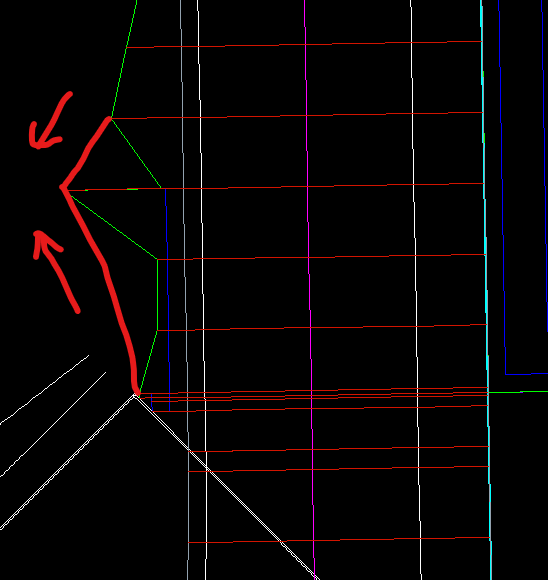

- Proposed IA Strings.png (14.93 KiB) Viewed 6154 times
-

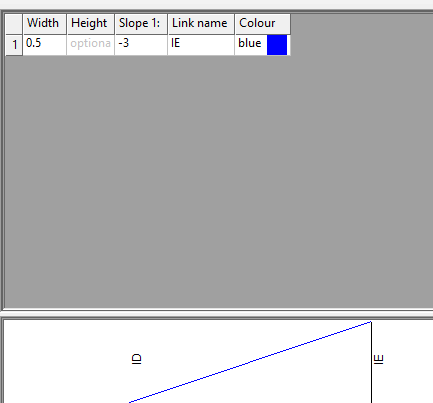

- V-Drain Template (Fixed).png (5.18 KiB) Viewed 6154 times
-
- V-Drain Template (Fill).png (4.96 KiB) Viewed 6154 times
-

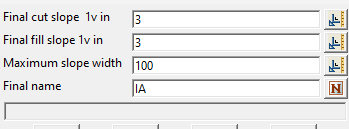

- V-Drain Template (Final Cut Fill).png (3.94 KiB) Viewed 6154 times
Re: Modifying IA Strings
If you use modify link to tin rather than use a final template
You can keep modifying that link afterwards in the MTF
Modifying width pos-pos might achieve what you want
You could also increase chainage intervals in that area and see more accurately what's happening with the interface.
You can keep modifying that link afterwards in the MTF
Modifying width pos-pos might achieve what you want
You could also increase chainage intervals in that area and see more accurately what's happening with the interface.
Re: Modifying IA Strings
" interface string that is generated via a v-drain template (Final Cut/Fill) in the MTF " - with template generated interface strings you are limiteed to using the final modifiers .
Baically the reason to not use templates since version 10
Baically the reason to not use templates since version 10
