Grade or Height between 2 strings

[Mark Iacomella]

I’m looking for a method to select two different strings and 12d produces a dimension documenting either the grade between the 2 strings, or the difference in height.

Thanks

[Graeme Winfield]

Hi Mark

How about this?
[Report =>Xfall/offset]

[Mark Iacomella]

Thanks Graeme

That's pretty close.

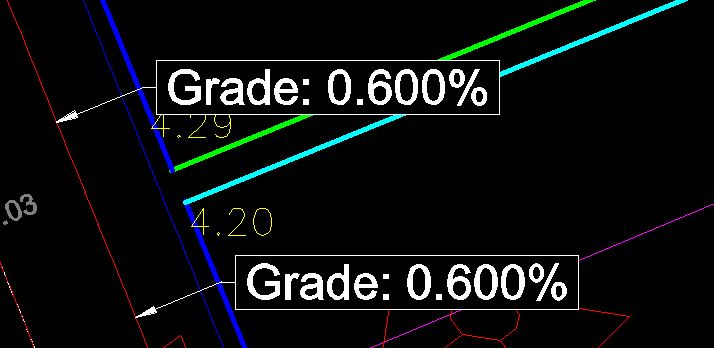

The report shows the information I was after, however I was hoping the information could be presented in the model as a dimension, like the attached screen shot.

Thanks

Mark

[Graeme Winfield]

I think you will need to draw a construction string doing what you want.

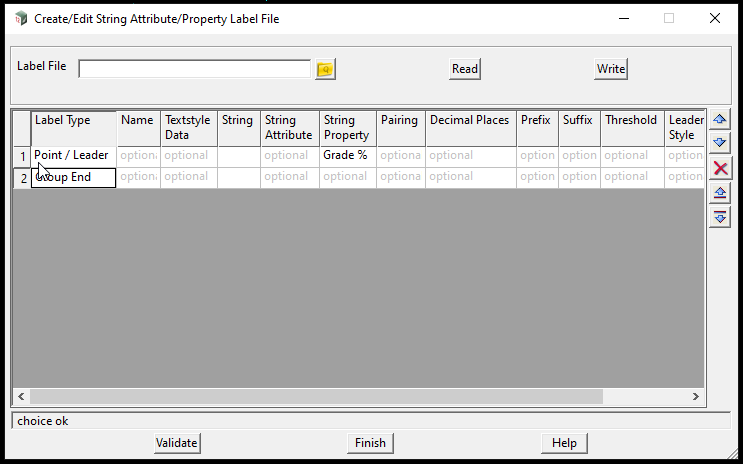

Then do a leader for that string/segment.

[Greg Newman]

If that's what you are after it is simply a matter of drawing a line between the 2 strings, then labeling it


[Greg Newman]

echo, echo

beat me by that much....

[Mark Iacomella]

Thanks all, that's very helpful
